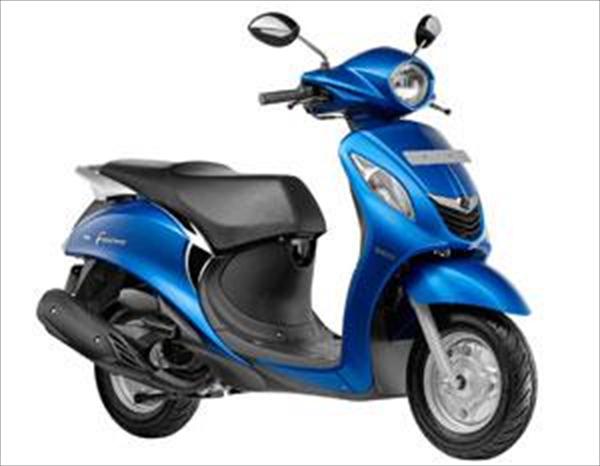

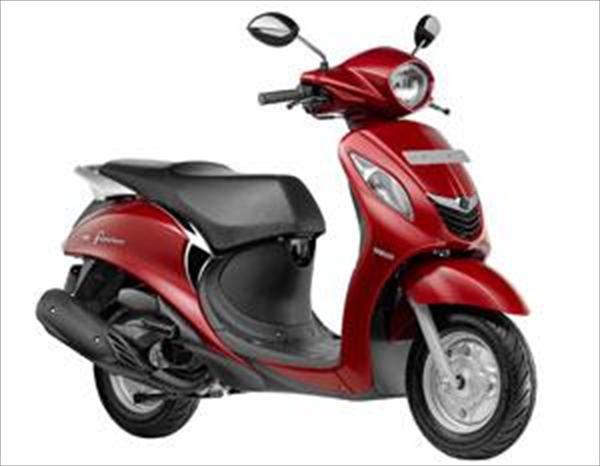

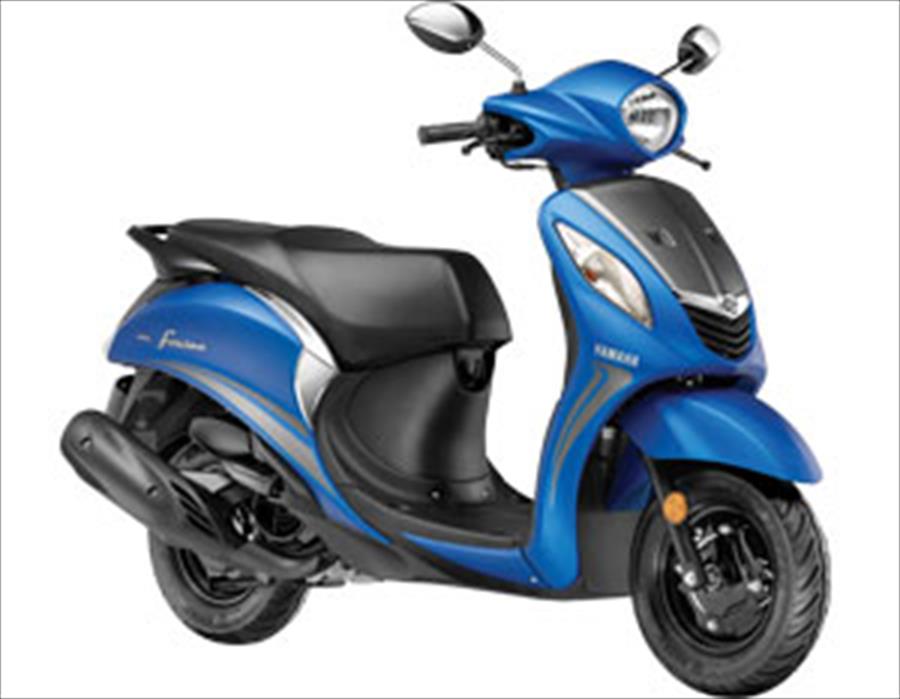

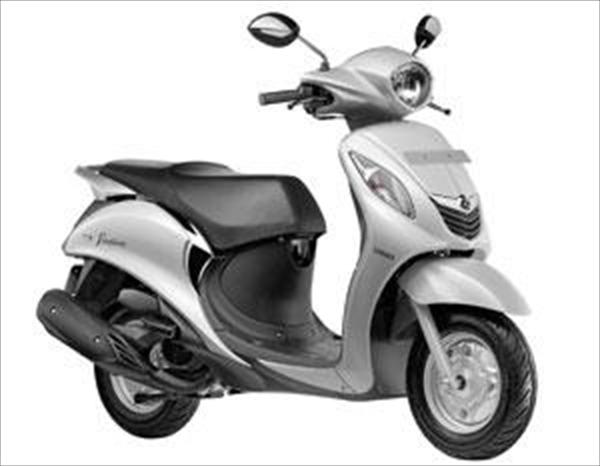

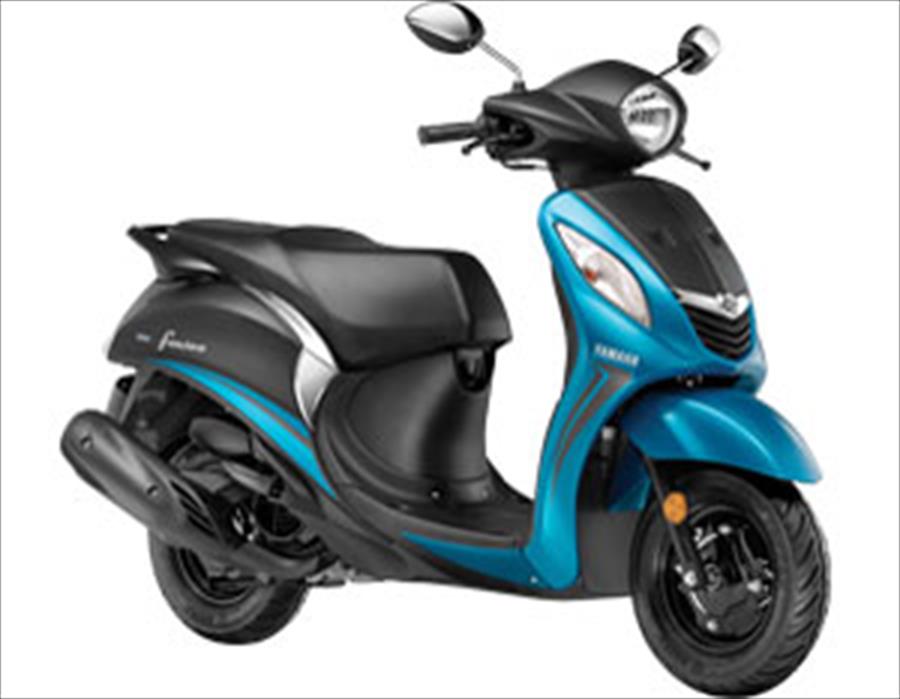

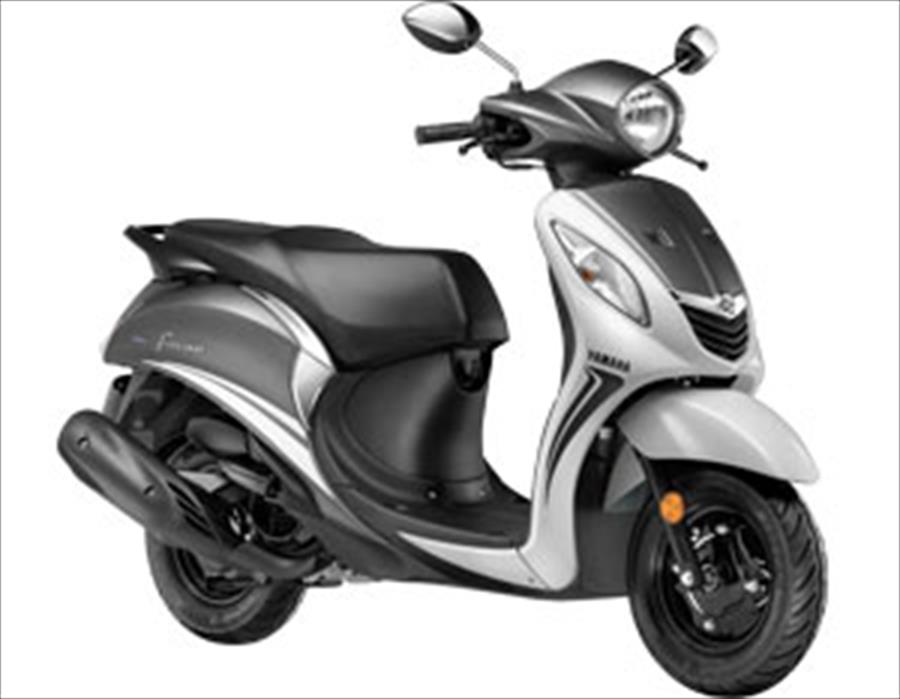

Yamaha Fascino

Fascino - Fascinofy your world! The all-new Yamaha Fascino is a performer whose skill and virtuosity enthralls you with grace. And once you are in awe of its charming looks, you can’t step down without experiencing the power of its air-cooled, 4 stroke, single cylinder 113cc Blue Core engine resting under its extra-cushioned seat, designed for the everyday Indian commuter. The scooter also conceals a 21L of storage space, enough to accommodate a full-face helmet. Thanks to the optimized ignition timing combined with better combustion efficiency of the newly adopted high-ignitability nickel spark plug, its Blue Core engine effortlessly delivers outstanding economy with smooth acceleration. Fascino is elegance in motion. And the first thing to catch your eye is the chrome-plated front grill and rear view mirrors that bring back the retro times paired with its modern curves. Try and you can’t move on without adoring the handlebar mounted lamp that stands out effortlessly. Your gaze flows with the Fascino curves as it almost takes you on sightseeing from one angle to another. On the way, is a stunning meter console where you are bound to stop over for a while before you move on to the rear region that again knocks you out with a mix of chrome and glass. But just before you are there, the 3D logo will catch your attention like a broach that completes your dress code while you head out to fascinofy your world. Style is not just limited to looks. And Fascino is a testimony from head to toe. The lightest (103kg) of all the Yamaha scooters, Fascino smartly uses plastic-resin parts and thorough weight reducing design measures to offer you easy handling for daily use. Add to it, the perfectly designed seat with a (7mm) inward curve around thighs to achieve greater ease of leg reach. But what silently inspires you to keep riding is the plenty of cushioning for the comfort of both the rider and the pillion even on rough roads. And that’s not it. With the 380mm wide and 220mm long footboard, the amazing leg room almost makes it a sedan on two wheels. So, pull on your half-helmet, peg your jeans, step onto this glamorous neo-classic scooter and you will lose count of the heads you turn.

Ray

ENGINE :
Engine type     Air-cooled, 4-stroke, SOHC, 2-valve
Displacement     113 CC
Bore & Stroke     50.0mm x 57.8mm
Compression ratio     9.2:1
Maximum Horse Power 7.1PS /7,500 rpm
Maximum torque           8.1 N.M / 5000 rpm
Starting System            Electric and Kick
Lubrication                   Force-Feed Lubrication, Wet Sump
Cylinder layout             Single cylinder
Clutch type                    Dry, centrifugal
Ignition System             CDI (Capacitor Discharge Ignition)
Fuel supply                    Carburetor
Battery                          12 V, 5 AH(10 H)
Headlight Halogen Bulb 12V, 35W/35W x 1
Primary / Secondary Reduction Ratios           1.000/9.388
Transmission Type           V-Belt Automatic

DIMENSIONS
Overall (L x W x H)        1,815 mm x 675 mm x 1,120 mm
Kerb Weight                     103 kg
Wheelbase                       1,270 mm
Minimum ground clearance 128 mm
Engine Oil Volume            0.74L
Fuel Tank Capacity            5.2L
Seat height                         775 mm

CHASSIS
Frame type Underbone
 Front Suspension Telescopic
Rear Suspensions Unit Swing
Front Brake Drum Brake
Rear Brake Drum Brake
Front Tyre 90/100-10 53J (Tubeless)
Rear Tyre 90/100-10 53J (Tubeless)
Brake/Taillight 12V, 21W/5W x 1
Turn Signal Light (Front) 12V, 10W x 2
Turn Signal Light (Rear) 12V, 10W x 2

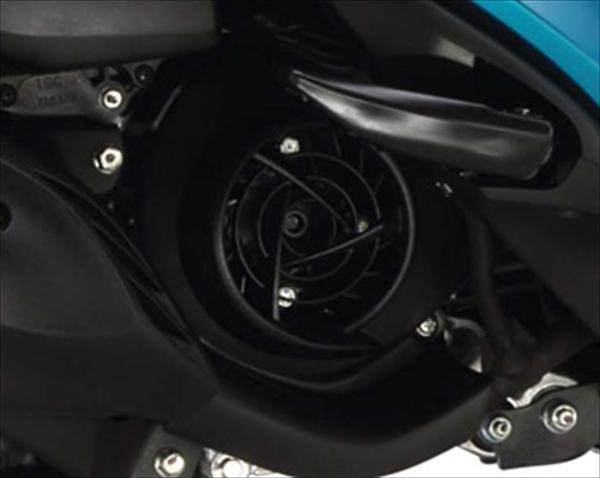

POWERFUL BLUECORE ENGINE

Air-cooled, 4 stroke, single cylinder 113cc Blue Core engine effortlessly delivers outstanding economy with smooth acceleration.

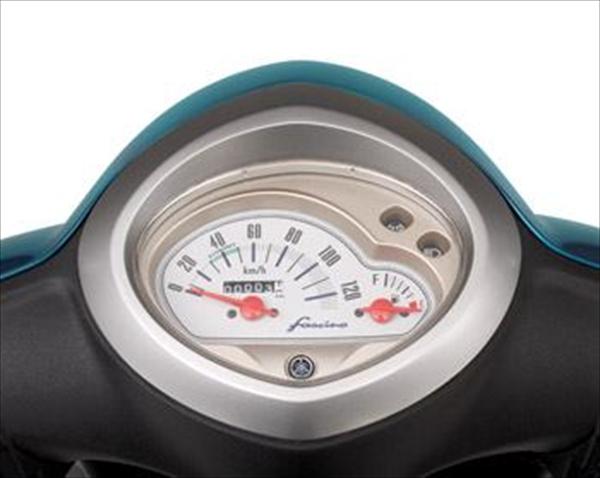

Stylish Meter Console

Keep a tab on the numbers in style with a design thats miles ahead of the category.

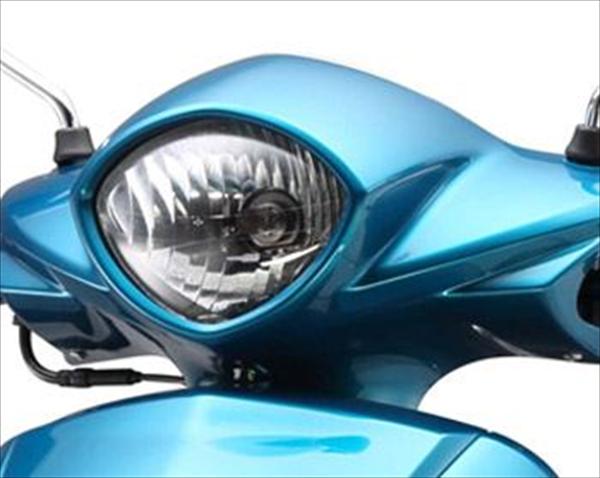

Stunning Head Lamp

Mounted on the handlebar, this stylish headlamp will make you lose count of the heads you turn.

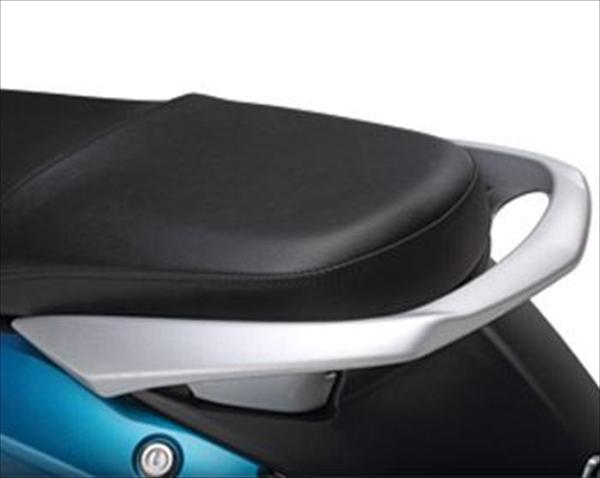

Grab Bar

Perfectly blended into the design, this easy-to-hold grab bar ensures a safe ride and easy dismounting for the pillion rider.

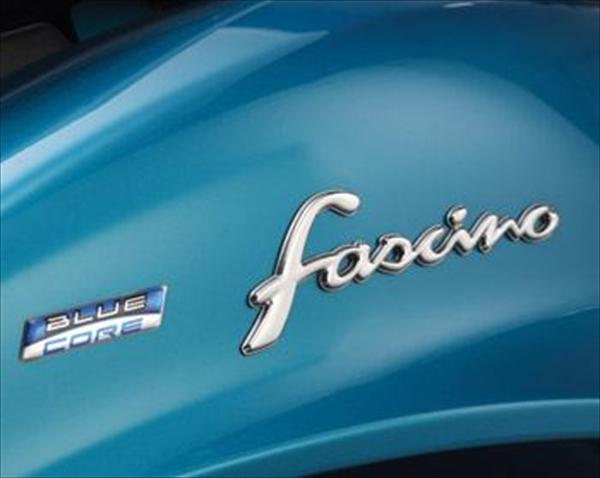

3D Logo

But just before you are there, the 3D logo will catch your attention like a broach that completes your dress while you head out to fascinofy your world.

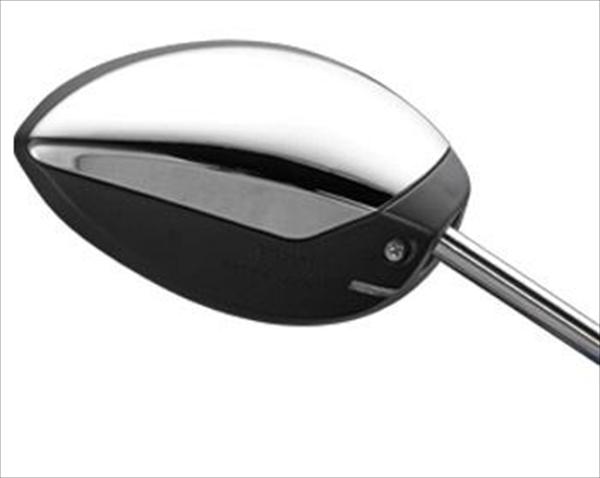

Chrome Finish

Travel freely between eras as the classic chrome touch enhances your Fascinos modern curves.

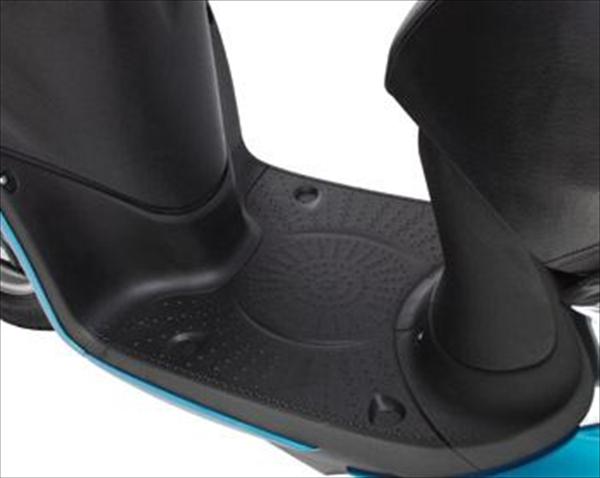

Footboard

Enjoy amazing leg room that almost makes it a sedan on two wheels.

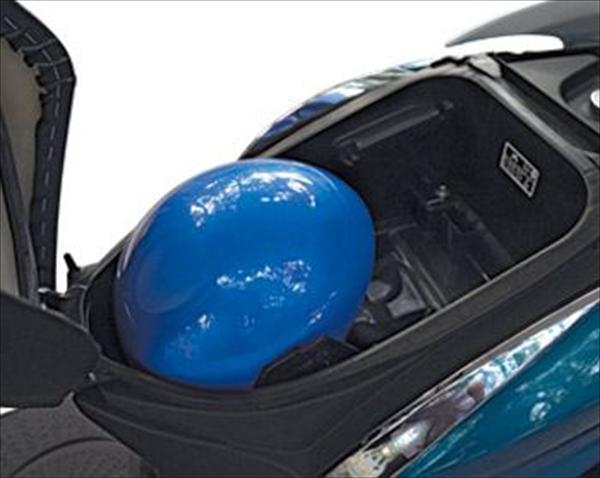

Large Storage

Keep your hands free and helmet safe in 21L of underseat storage.

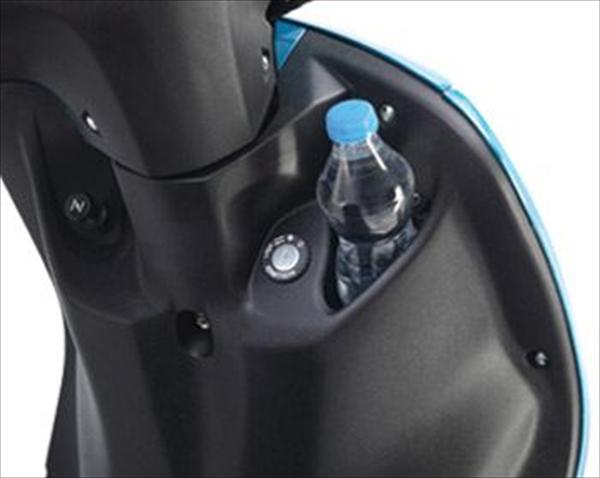

Small Storage

Your wallet, your phone or a diary, this compact slot inspires a different usage every time you ride.

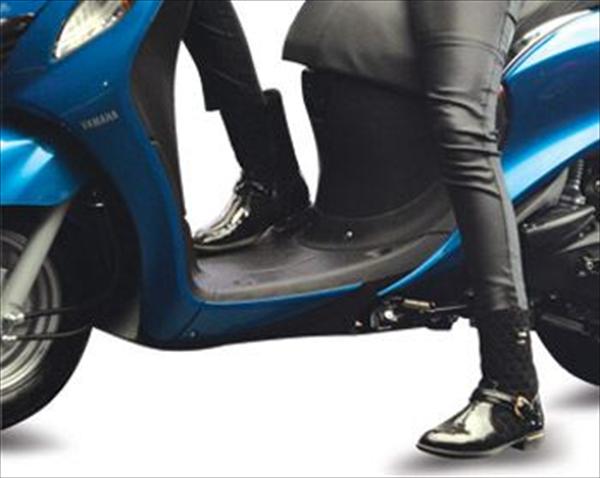

Easy Leg Reach

Style gets smarter as the new seat design is 7mm leaner around thighs to ensure easy leg reach for better control.

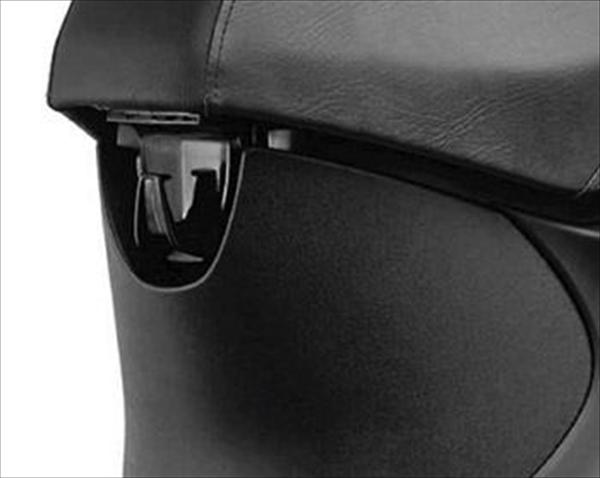

Convenient Hook

Carry your bag in style as style hooks up with convenience.

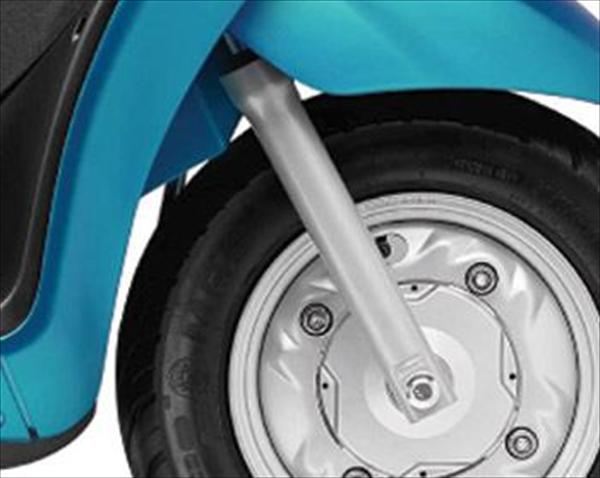

Telescopic Suspension

Take on the bumpy roads with a smile.

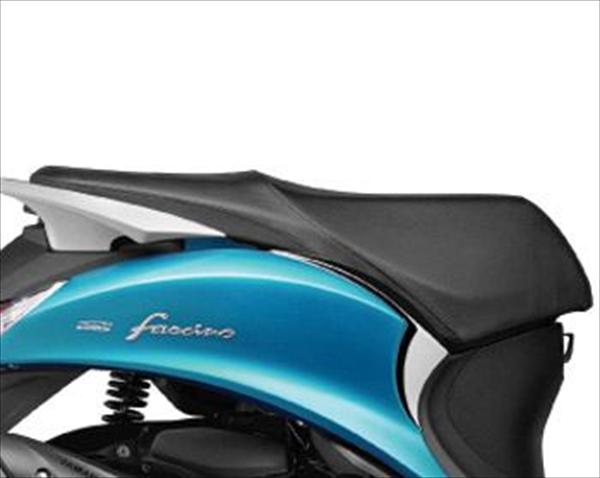

Long & Comfortable seat

Thick cushioning makes even rough roads feel smoother.

COOL COBALT


HAOUTE WHITE


ROUGE RED

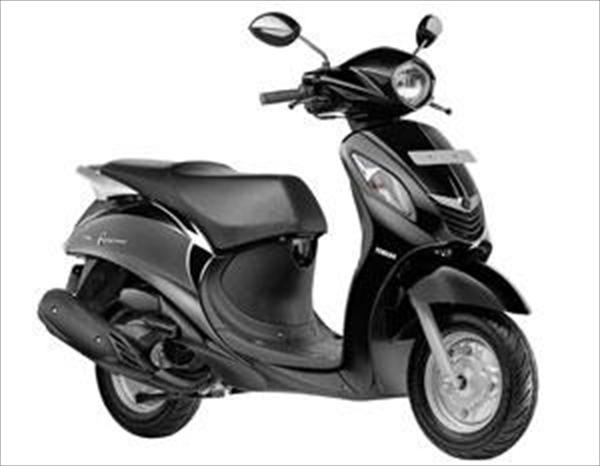

TUXEDO BLACK


SASSY CYAN


Blending Blue


Fusion Red


Unite White


Mingling Cyan


Scooters

SERVICE SCHEDULE FOR SCOOTERS
Type Of ServiceNo Of DaysTotal KmsType Of ServicePeriodic Maintenance
1st301000Free
2nd1003000Free
3rd1706000Free
4th2409000Free
5th31012000Free
6th38015000PaidRefer Owner Manual
7th45018000BonusRefer Owner Manual
8th52021000PaidRefer Owner Manual
9th59024000BonusRefer Owner Manual
10th66027000PaidRefer Owner Manual
11th73030000BonusRefer Owner Manual
