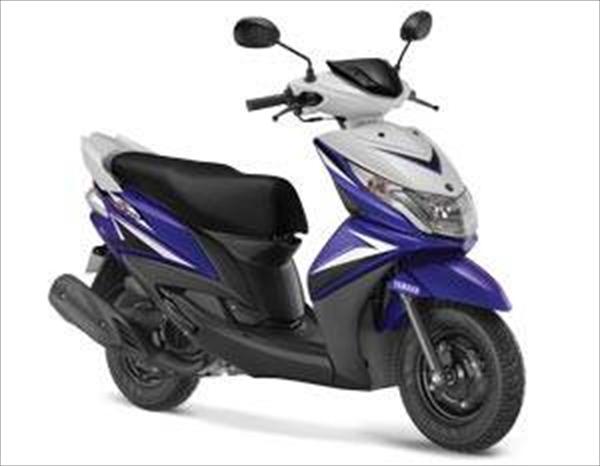

Yamaha Ray Z

RAY Z has a sporty look and feel with a smoked-finish visor for a motorcycle-like image which makes Ray Z more stylish, aluminum rear wing-shaped tandem rider grab-bar, a new instrument panel with a carbon fiber patterned background, a carbon fiber patterned seat cover material, and dynamic coloring and graphics for character that expresses "Aggressive Sportiness". The new model adopts air-cooled 4-stroke 113cc engine with CVT (Continuous variable transmission) that delivers smooth start-up acceleration and good pickup along with great fuel economy. The engine is based on Yamahas engine concept ideal "Blue core" to gives sporty rides with good fuel mileage.

Ray

ENGINE :
Engine type     Air-cooled, 4-stroke, SOHC, 2-valve
Displacement     113 CC
Bore & Stroke     50.0mm x 57.8mm
Compression ratio     9.2:1
Maximum Horse Power 7.1PS /7,500 rpm
Maximum torque           8.1 N.M / 5000 rpm
Starting System            Electric and Kick
Lubrication                   Force-Feed Lubrication, Wet Sump
Cylinder layout             Single cylinder
Clutch type                    Dry, centrifugal
Ignition System             CDI (Capacitor Discharge Ignition)
Fuel supply                    Carburetor
Battery                          12 V, 5 AH(10 H)
Headlight Halogen Bulb 12V, 35W/35W x 1
Primary / Secondary Reduction Ratios           1.000/9.388
Transmission Type           V-Belt Automatic

DIMENSIONS
Overall (L x W x H)        1,815 mm x 675 mm x 1,120 mm
Kerb Weight                     103 kg
Wheelbase                       1,270 mm
Minimum ground clearance 128 mm
Engine Oil Volume            0.74L
Fuel Tank Capacity            5.2L
Seat height                         775 mm

CHASSIS
Frame type Underbone
 Front Suspension Telescopic
Rear Suspensions Unit Swing
Front Brake Drum Brake
Rear Brake Drum Brake
Front Tyre 90/100-10 53J (Tubeless)
Rear Tyre 90/100-10 53J (Tubeless)
Brake/Taillight 12V, 21W/5W x 1
Turn Signal Light (Front) 12V, 10W x 2
Turn Signal Light (Rear) 12V, 10W x 2

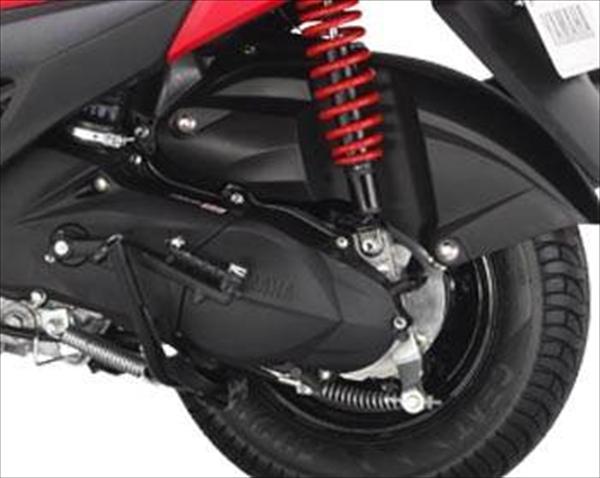

Engine

RAY-Z has a powerful 113cc Air-cooled 4-stroke 113cc engine with CVT (Continuous variable transmission) that delivers smooth start-up acceleration and good pickup along with great fuel economy. The engine is based on Yamahas engine concept ideal "Blue core" to gives sporty rides with good fuel mileage. The engine intake/exhaust systems and new transmission settings have been optimized for performance in the traffic and road condition of India. Its power development characteristics make it even easier to handle for riders and drivability is especially good in the very low-speed and low rpm range to ensure ease and more confidence for beginners.

Carburettor

The engine is fitted with a BS type carburetor with a throttle position sensor (TPS) function. In combination with the settings of the CVT, this helps in the following manner: Ensure good running performance (smooth start-up acceleration and lively passing acceleration) Excellent fuel efficiency Good emission characteristics.

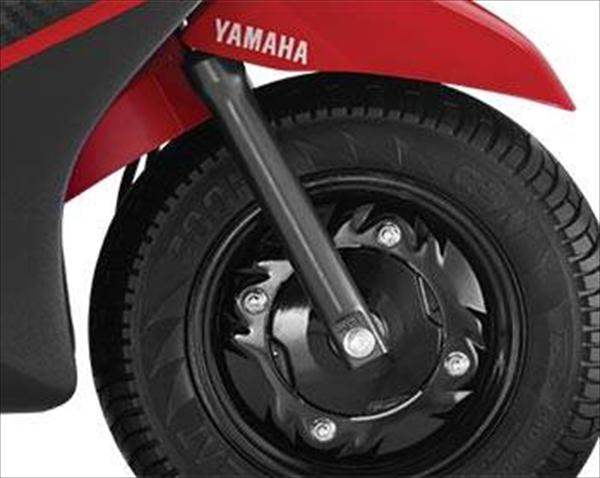

Telescopic Suspension for Stability

Ray Z has telescopic type front fork suspension which ensures agile handling and running performance with a feeling of stability even over rough roads because of its bigger suspension stroke.

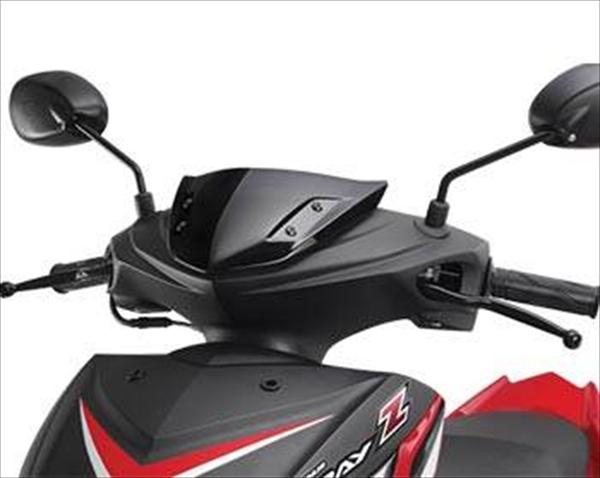

Stylish Meter Visor

A new visor (smoked finish) is adopted on the front that creates a "downforce" image and adds a sporty look to the front view.

Aluminium Grab Bar

Wing-shaped tandem rider grab-bars made of aluminum at the rear have been adopted. They contribute to the sporty look of the body and the "downforce" image. There are also louver-like rids on the inside of the bars that give an impression of strength.

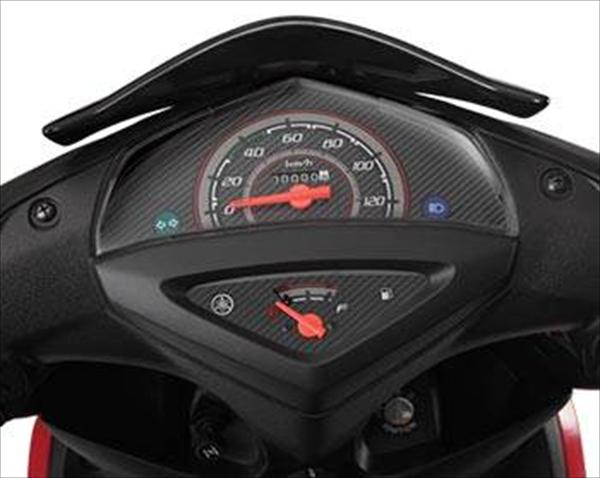

Carbon Patter Meter Design

The instrument panel has been designed like the image of a sports car cockpit. It features a carbon pattern for the background and the new display fonts have a sporty look to them.

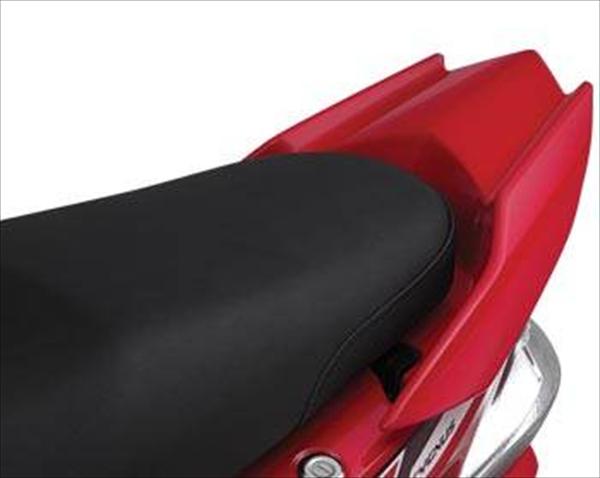

Comfortable Longer Seat With Carbon Pattern

A new seat cover material with a carbon fiber-styled pattern has been adopted. This makes the seat more comfortable for the rider. It combines with the rear wing-like grab-bars to create a sporty impression.

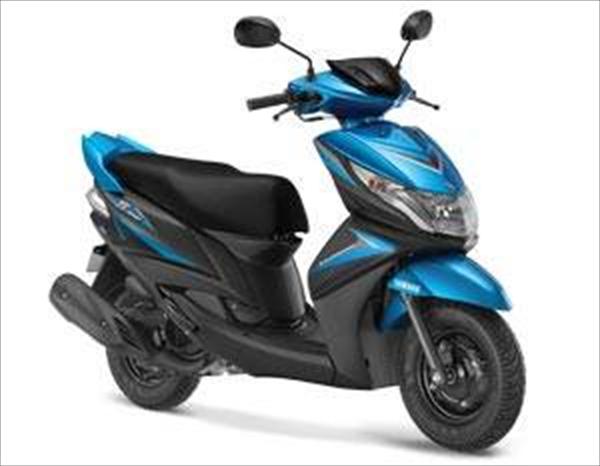

Astral Blue

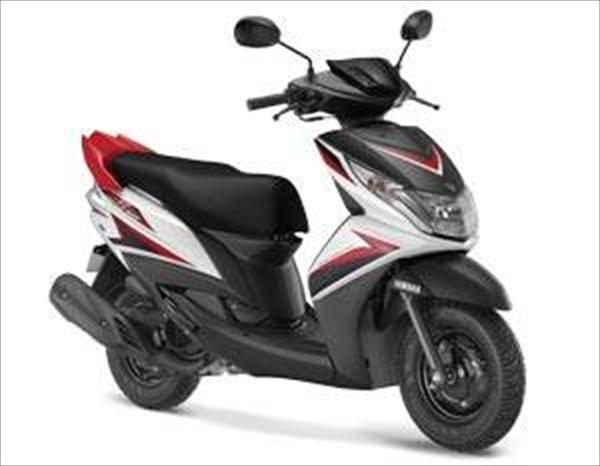

Moon Walk White

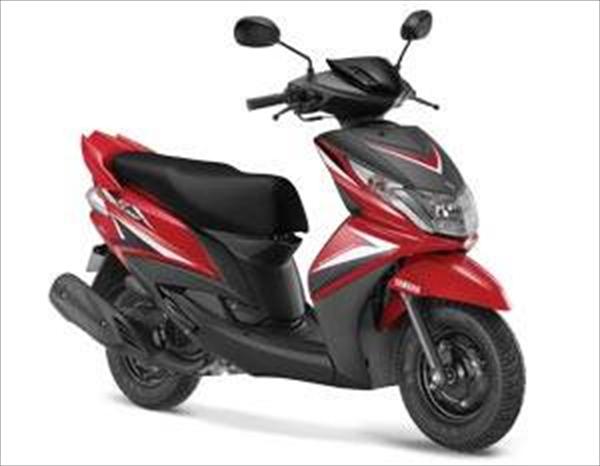

Regal Reg


True Blue


Service Schedule

SERVICE SCHEDULE FOR SCOOTERS
Type Of ServiceNo Of DaysTotal KmsType Of ServicePeriodic Maintenance
1st301000Free
2nd1003000Free
3rd1706000Free
4th2409000Free
5th31012000Free
6th38015000PaidRefer Owner Manual
7th45018000BonusRefer Owner Manual
8th52021000PaidRefer Owner Manual
9th59024000BonusRefer Owner Manual
10th66027000PaidRefer Owner Manual
11th73030000BonusRefer Owner Manual
