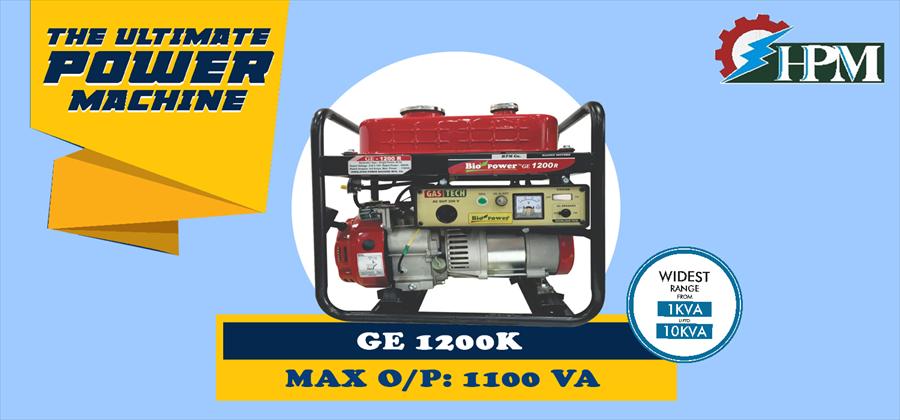

| Model Name | GE – 1200 K |
| Special Highlight | - World’s lightest 1 KVA fuel generator & most fuel efficient
|
| Application | - Light load application up to 1 KVA, rural electrification
- For home & shop use for all low & middle income people in power deficit state, where power cost is for more than 12 hrs. Can charge inverter battery along with other house load. Runs water pump set Refrigerator, TV, Cooler etc. household appliances due to light weight ideal for field jobs and mobile applications, picnic camp application.
|
| *Max AC. Output VA | 1100 |
| *Rated AC. Output VA | 900 |
| Rated Current Amps | 4 |
| NFB Amps | 4 |
| AC. Voltage On Laptop Mode | 250 Volts ± 10 Volts, 50 Hz, Single Phase |
| AC. Voltage On Power Mode (No Load) | N/A |
| Alternator | #Alternator Max. Current Capacity | 8 Amps. |
| Alternator | Brushless, Rare Earth Magnetic Rotor, THD = 2 %, Pure Sine Wave |
| Engine | Model | HM156K, |
| Type | OHV25°Inclined,single cylinder, 4 strokes, S.I, Forced air cooling |
| Maximum Power | 2.5 hp @ 3600rpm |
| Bore x Stroke | 56×40 mm |
| Displacement | 98cc |
| Starting System | Recoil Start |
| Fuel | Petrol start & Kerosene run |
| Fuel Tank Capacity | Petrol -0.5 Ltr. & Gasolene – 7.0 ltr. |
| Fuel Consumption | 0.6 ltr/hr, (At rated Load) |
| Lube. Oil Capacity | 400 ml. |
| Lubricating Oil Consumption | 6.5g/kW.h |
| Sound level (Db) (at 1 Meter) | <86Db |
Panel &
Other Standard Features | Voltmeter | Analogue |
| Oil Alert System | Yes |
| LPG/ Gas Fuel Compatibility | Yes |
| Fuel Level Gauge | Yes |
| Overload Protection (NFB) | Yes |
| Costar Wheels | No |
| Packing | Gross weight-KG | 35 KG |
| Dimension LxWxH (mm) | 495x365x460 mm |
| Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation |
