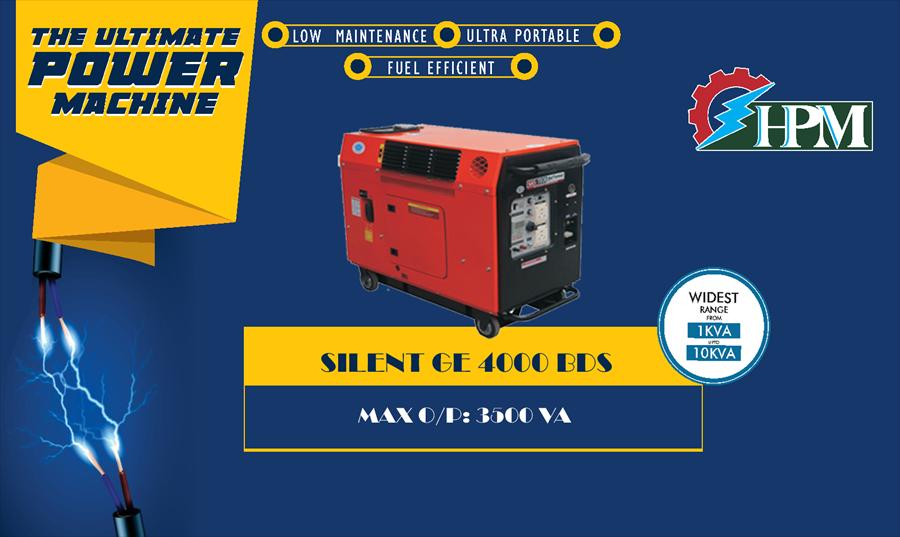

ModelsSILENT BDS 4000
     Special Highlights
  • Suitable to run 1 Ton Air Conditioners, Submersible Pump, Deep Freezers, Inductive & Motor Loads.
  • Pure sine wave THD<2%, Suitable for sensitive electronic equipment’s
  • Very high over loading capacity.
  • Auto shut off if engine oil is low.
  • Auto shut off if no diesel in tank.
  • High Temperature Indicator & Alarm
  • AMF Panel Compatible (can start and stop itself, Auto load transfer & all time battery charging) (Optional)
  • World’s highest fuel efficient Portable D.G. Set.
    ApplicationLow noise Portable Diesel Generator, fuel efficient, produces electricity at very economical rates. Wide usage from home, offices, commercial,  industrial, institutional., field job etc.
Max AC. Output VA3500
Rated AC. Output VA3000
Rated Current Amps13.6
NFB Amps14
AC. Voltage On Laptop Mode230 Volts ± 10 Volts, 50 Hz, Single Phase
AC. Voltage On Power Mode (No Load)250 Volts ± 5 Volts
Alternator#Alternator Max. Current Capacity28 Amps.
AlternatorBrushless, Rare Earth Magnetic Rotor, THD = 2 %, Pure Sine Wave
Type4-Stroke, OHV, Single Cylinder, Direct Injection, Swirl Chamber, Inclined type
Bore x Stroke70*60 mm
Starting SystemRecoil Start and Self Start
Fuel Tank Capacity14.5 Ltrs.
Fuel Consumption0.85 Ltr./hr.
Lube. Oil Capacity800 ml.
Lubricating Oil Consumption3.2 gm./Hr.
Sound level (Db)<75DB
Panel &
Other Standard Features
Digital Hour MeterNo
Oil Alert SystemYes
Diesel Alert SystemYes
Cooling Fan IndicatorYes
AMF Panel Auto & Remote Start CompatibilityYes
Fuel Level GaugeYes
Overload Protection (NFB)Yes
Costar WheelsYes
Gross weight-KG110 Kg.
PackingDimension LxWxH (mm)1000x470x710 mm
Battery Specification12 Volt 35 Ah  Size =190×120×225 (L×W×H)
 Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation
