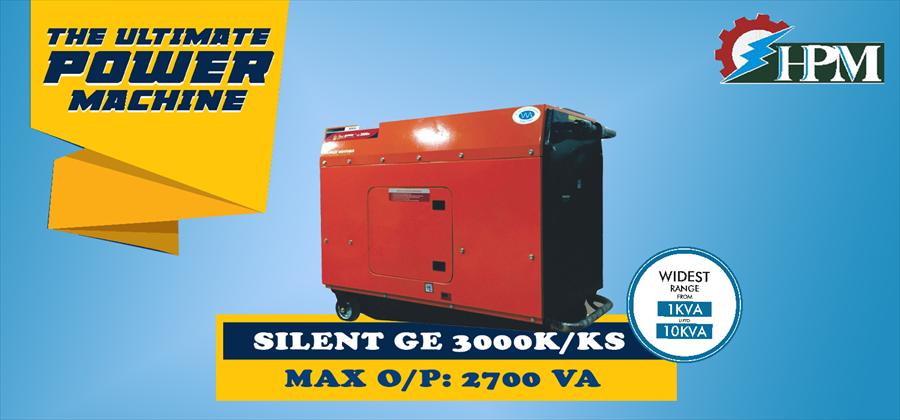

Model | SILENT GE 3000 K/KS |
Special Highlight | - Very low sound, Petrol Start & Gasolene run generator
|
Application | - Due very Low Sound it becomes so much suitable for Home, Nursing Homes, Educational Institutes , Small Offices, & Cyber Cafe.
|
Max AC. Output VA | 2700 |
Rated AC. Output VA | 2500 |
Rated Current Amps | 11 |
NFB Amps | 12 |
AC. Voltage On Laptop Mode | 230 Volts ± 10 Volts, 50 Hz, Single Phase |
AC. Voltage On Power Mode (No Load) | 250 Volts ± 5 Volts |
Alternator | #Alternator Max. Current Capacity | 16 Amps. |
Alternator | Brushless, Rare Earth Magnetic Rotor, THD = 2 %, Pure Sine Wave |
Engine | Model | HM170KC |
Type | OHV25°Inclined,Single Cylinder,4 strokes, S.I, Forced Air Cooling |
Maximum Power | 5.5 hp @ 3600 rpm |
Bore x Stroke | 70×54 mm |
Displacement | 208 cc |
Starting System | Recoil Start and Self Start |
Fuel | Petrol start & Gasolene run or LPG (optional) |
Fuel Tank Capacity | Petrol -0.6 Ltr. & Gasolene – 14 ltr. |
Fuel Consumption | Gasolene: 1.3 ltr/hr, LPG: 750gm./hr. |
Lube. Oil Capacity | 600 ml. |
Lubricating Oil Consumption | 2.5 gm./Hr. |
Sound level (Db) | <72Db |
Panel & Other Standard Features | Voltmeter | Analogue |
Oil Alert System | Yes |
LPG/ Gas Fuel Compatibility | Yes |
Fuel Level Gauge | Yes |
Overload Protection (NFB) | Yes |
Cooling Fan Indicator | No |
Costar Wheels | Yes |
Gross weight-KG | 85 KG |
Packing Details | Dimension LxWxH (mm) | 1000x470x710 mm |
Battery Specification | 12 Volt 9 Ah Size =135×75×140 (L×W×H) |
Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation |
